Airdopes Prime 512

1. Check when both the earbuds are taken out of the charging case. The earbuds will enter Connection Mode indicated by a tone prompt in the earbuds.

2. Place the earbuds in the charging case and then try using them again. Check if it connects automatically.

3. Check and see if factory resetting the device works.

4. Check if the pogo pins in the charging case and both earbuds are clean. You may do so by gently cleaning them using a cotton swab dipped in alcohol and try using them again.

Resetting the device usually resolves such issues.

To perform a reset:

NOTE: Before performing reset, clear "Airdopes Prime 512om your device's pairing history.

1. Place both earbuds inside the case in the correct orientation.

2. While the earbuds are inside the case, long press the reset button for 10 seconds. All 3 case LEDs will light up consecutively from left to right in yellow once the reset button is pressed. When reset is completed, all 3 case LEDs will flash 3 times for 1 second each in red.

3. Close the lid and then re-open it again after a few seconds.

4. Perform a fresh connection attempt and enjoy!

Congratulations! Your Airdopes Prime 512 been Reset.

If IWP™ isn't functioning:

1. Confirm that your Airdopes model has IWP™ tech integrated.

2. Make sure you have paired the earbuds at least once before to the device you are trying to use IWP™ with.

3. Check if Bluetooth is turned on for your media device and your product name is in the list of paired devices.

4. Try factory-resetting the device.

Check to see if the wire connected to the case is not broken. Use other wires and ensure that the charger being used is not of 9V or 12V as that will damage the case. The LED located on the charging case indicates the battery status of the case.

To charge the case, plug one end of the provided cable into the case and connect the other end to a computer or a wall adapter.

Note: The 3 LEDs located on the charging case indicate the battery status of the case.

Case battery level LED indication in charging state-

1. <10% - Breathing red pattern for 5 seconds on all 3 LEDs

2. 10- 29% - Left LED remains solid red for 5 seconds

3. 30- 59% - Left and middle LEDs remain solid green for 5 seconds

4. 60- 99% - All 3 LEDs remain solid green for 5 seconds

5. 100% - All 3 LEDs remain solid green for 5 seconds

1. Check to see if the earbuds have been put inside the case in the right orientation.

2. Check to see if the earbuds are completely charged or not.

3. Once the earbuds have been completely charged, the corresponding case LED remains solid blue for 5 seconds.

4. In the App - Check whether the Smart Diagnostics function of the boAt Hearables app can identify any earbud battery issues.

Go to the sound settings of your phone and set the equalizer to normal/ default/ none/ 0. EQ settings navigation for top 9 popular mobile brands are as follows:

1. Vivo - https://www.vivoglobal.ph/questionlist/hi-fi-audio/​

   Go to i Music>tap the icon at the left upper corner>select Audio effect>turn on Deep space sound effects>touch Equalizer in the bottom., then you can adjust Equalizer as you like.

   Note: Equalizer is supported in Funtouch OS 4.0 and higher version and can be adjusted only with the earphone plugged in.

2. Xiaomi - https://www.mi.com/global/support/faq/details/KA-497702/​

   Settings > Sound & vibration > Sound effects > Graphic equalizer, You can now choose preset styles or manually adjust the equalizer to your preference.

3. Samsung - https://www.samsung.com/levant/support/tv-audio-video/how-to-set-eq/​

   Settings > Sounds and vibration > Sound quality and effects > Equalizer, You can now either choose from pre-set EQ options (like "Music", "Bass", etc.) or manually adjust the frequency bands to fine-tune the sound.

4. Realme - https://c.realme.com/in/post-details/1397554219417985024​

   There 3 variations for EQ settings navigation according to the different UIs as mentioned below:

   A] Realme UI 6.0: Settings > System & updates > Sound > Equalizer.

   B] Realme UI 5.0, 4.0, 3.0: Settings > System/Additional settings > Sound > Equalizer.

   C] Realme UI 2.0: Settings > Convenience tools > Sound > Equalizer.

5. Oppo - https://www.youtube.com/watch?v=-gpyYtrw-58​

   Open the main Settings app on your phone > Go to Sound & vibration or a similar menu > Look for an Equalizer or Sound Effects option > The exact path can vary depending on the phone model and Android version > Enable it and choose from presets or manually adjust the sliders for different frequency bands.

6. Apple - https://support.apple.com/en-in/guide/iphone/iph5643d2c85/ios​

   Settings > Music > EQ

7. Motorola - https://en-in.support.motorola.com/app/answers/detail/a_id/155724/~/enhance-sound​

   Go to Settings > Sound (& vibration) > Audio effects. (Or, open the Moto app and touch menu > Play > Audio effects) > Turn it On > to use only for headphones or connected devices, set the speaker equalizer to Flat.

8. Poco - https://www.mi.com/global/support/faq/details/KA-509973/#:~:text=1.,or%20adjust%20the%20equalizer%20manually.​

   Settings > Sound & Vibration/ Sound > Sound Effects / Equalizer > Graphic Equalizer

9. OnePlus - https://community.oneplus.com/thread/1111615​

   Settings > Sound & Vibration > Sound Quality & Effects > Audio Tuner or Audio Tuner > Equalizer Settings.

• Perform a factory reset. If the earbuds are clogged with ear wax, simply clean the earbuds to restore the original sound.

• In the App: Check if there are speaker issues using the Smart Diagnostics function of the boAt Hearables app.

1. Check to see if the device has been properly charged first. The blue LED on the earbuds rapidly flashes 3 times to indicate that they have been completely charged.

2. Check if the voltage of the charger is correct for the charging case and if the lights on the bottom of the case are glowing to indicate charging.

3. Check if the product was not subjected to any mishandling, broken wires or exposed to direct sunlight, or hazards like fire.

1. Check if the controls do not work while being connected to another device.

2. Check if the media player being used supports such controls and if the controls do not function on a call or with other media players.

3. Check if the controls have been physically damaged or exposed to any hazards.

1. Try restarting the device.

2. Perform a factory reset.

3. Make sure there are no objects between your earbuds and your connected device.

4. Try moving your device closer to the earbuds to see if the connection improves.

5. Look closely at the microphone hole for any dirt or earwax. If the microphone seems blocked, gently clean that area.

6. In the App: Run the Smart Diagnostics function of the boAt Hearables app and check whether there are issues related to the earbud mic. Please note the Smart Diagnostics function in the app can only identify issues related to the firmware and not the hardware.

NOTE: Before performing reset, clear "Airdopes Prime 512om your device's pairing history.

1. Place both earbuds inside the case in the correct orientation.

2. While the earbuds are inside the case, long press the reset button for 10 seconds. All 3 case LEDs will light up consecutively from left to right in yellow once the reset button is pressed. When reset is completed, all 3 case LEDs will flash 3 times for 1 second each in red.

3. Close the lid and then re-open it again after a few seconds.

4. Perform a fresh connection attempt and enjoy!

Congratulations! Your Airdopes Prime 512 been Reset.

1. To charge the earbuds, put them into the charging case in their correct orientation. Corresponding case LED flashes depending on the earbud remaining battery level.

2. Close the case lid.

3. Once charging is completed, the corresponding LED remains solid blue for 5 seconds and the charging case automatically switches off to save power.

• To charge the case, plug one end of the cable into the case and connect the other end to a computer or a wall adapter or a power bank.

1. Charging through wall adapter – Specs of the adapter: 5V/2A

2. Charging through cable/wire – Standard cable: 10 strands @0.10mm diameter/strand

3. Any other accessory can be used for charging the earbuds as long as the above norms are followed.

• Double tap the CTC on either earbud to answer an incoming call.

• Triple tap the CTC on either earbud to end an ongoing call or reject incoming calls.

• While playing music, double tap on the left or right earbud CTC to pause or play the track.

1. While playing music, triple tap on the left earbud’s CTC to return to the previous track.

2. While playing music, triple tap on the right earbud’s CTC to skip to the next track.

1. Increase Volume: Swipe in upwards motion from the bottom of the touch control area in steps to increase the volume by 4 levels on every swipe on either of the earbuds.

2. Decrease Volume: Swipe in downwards motion from the top of the touch control area in steps to decrease the volume by 4 levels on every swipe on either of the earbuds.

1. Please note that both the earbuds can be used in Mono mode. Use Smart Power On for switching on the desired earbud.

2. The selected earbud will automatically enter the connection mode indicated by alternate red and blue LED flashes.

3. Turn on the Bluetooth on your phone/media device and search for “Airdopes Prime 512” to connect.

1. Switch the earbuds on; both the earbuds automatically enter into Connection Mode.

2. This is indicated by the red and blue LEDs flashing alternatively on the master earbud and the blue LED flashing every 5 seconds on the slave earbud.

3. Turn on the Bluetooth functionality on your phone/media device and scan.

4. Search for ‘Airdopes Prime 512’ and tap on the same for pairing & connecting via Bluetooth.

5. To switch to Stereo mode from Mono, simply take out the other earbud from the case. It will automatically power on and pair with the previously selected earbud, hence enabling Stereo usage.

6. You can only skip to the "next track" using the right earbud in Mono/Stereo mode.

7. You can only switch to the "previous track" using the left earbud in Mono/Stereo mode.

• Long touch the CTC on the left earbud for 2 seconds to activate the default smart voice assistant.

• Long touch the CTC on the right earbud for 2 seconds to activate BEAST™ mode. Long touch the CTC on the right earbud for 2 seconds again to de-activate BEAST™ mode.

To install the boAt Hearables app, you can follow one of the options mentioned below-

1. Scan QR Code - Airdopes Prime 512 the Hearables app QR code printed on the outer packaging box. Simply scan this code using your smartphone and the subsequent link will redirect you to the Google Play Store and iOS Store, and you can select the applicable option.

2. Google Play Store - Download the boAt Hearables app from the Google Play Store on your Android smartphone. <https://play.google.com/store/apps/details?id=com.boAt.hearables&hl=en_IN&gl=US >

3. App Store - Download the boAt Hearables app from the App Store on your iOS smartphone.<https://apps.apple.com/in/app/boat-hearables/id1592550875 >

• After installing the app, follow the steps shown on the app to set up your account by entering your phone number, name, and email ID. Account setup is a one-time action.

1. Turn on the Bluetooth on your media device and connect with Airdopes Prime 512

2. Log in to your account on the boAt Hearables app.

3. Go to the “My Devices” section.

4. Open the case lid and take out Airdopes Prime 512. The earbuds will show up under the list of available devices with “Ready to Pair'' status.

5. Tap the Airdopes Prime 512 name card and accept the pairing request pop-up notification on your media device.

6. Tap the ‘Pair’ option on the pairing notification. You can also save AD Prime 512 to your Google account for fast pairing in the future by clicking on “Save” and then “Set up”.

Congratulations! Airdopes Prime 512 is now connected to your media device with “Connected” status.

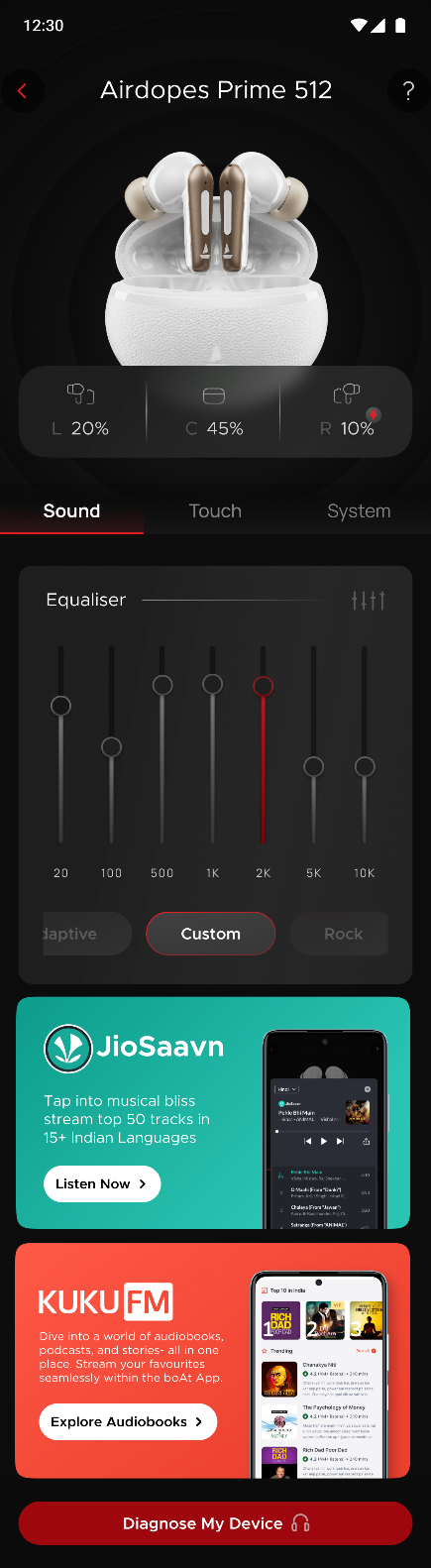

1. The boAt Hearables app shows all currently and previously paired devices in the ‘My Devices’ section.

2. Once Airdopes Prime 512 paired to your smartphone, the status gets changed to “Connected” in the thumbnail.

3. Tap the thumbnail, to check whether both the left and right earbuds are connected or not. You can also check the battery level of both earbuds.

1. To reset Airdopes Prime 512m your device, go to the Troubleshooting section “?” on the Hearables app.

2. Next, tap the “Malfunctioning” sub-header in the Troubleshooting section.

3. Click on the option “Reset My Device” to reset the earbuds. Congratulations! Your Airdopes Prime 512 been reset.

Note: Airdopes Prime 512l now show as “Ready to Pair” in the My Devices section. Follow the pairing procedure to connect the earbuds to your device.

To diagnose issues related to Bluetooth connectivity, mic, speaker, and battery, use the Smart Diagnostics function of the Hearables app.

1. Tap the “Diagnose My Device” option at the bottom.

2. Follow the instructions to start the smart diagnostics process.

3. Click on “Let’s Go” to start.

4. Complete all the steps one by one to check Bluetooth connectivity, mic, speaker, and battery functions.

5. Click on ‘Done’ to finish diagnostics.

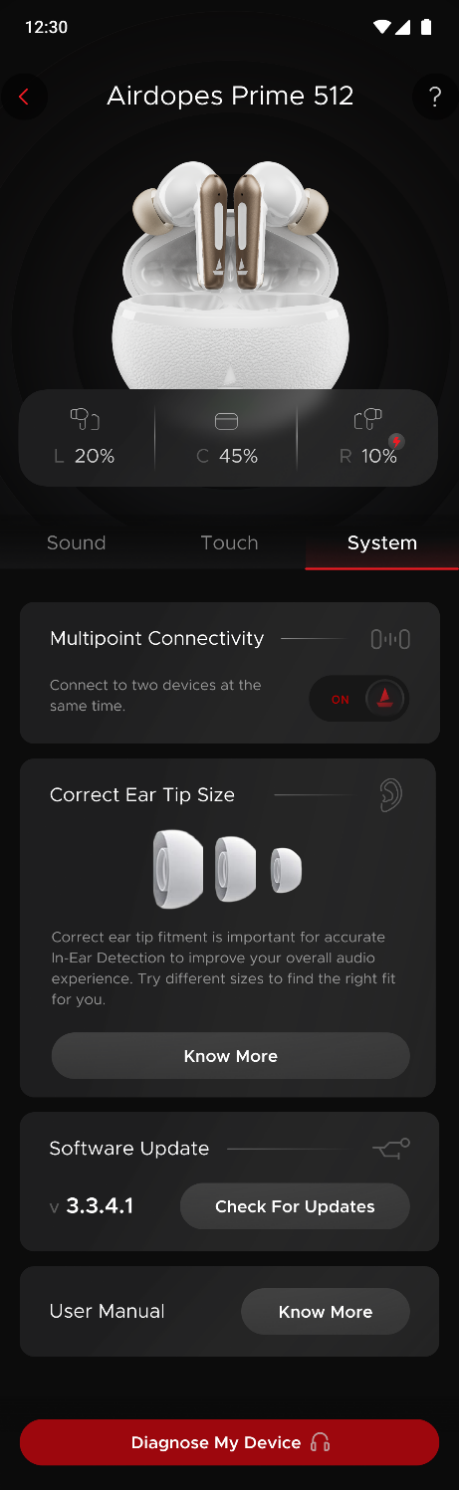

• You can view the product’s manual under the “System” tab of the Hearables app. Go to the ‘User Manual’ section and tap ‘Know More’ to access the user manual.

• The LED indications for the charging case are mentioned below:

1. Earbuds – Low battery in it (<30%): Red light quickly blinks 3 times with tone prompt

2. Earbuds – 30-100% battery: Blue LED flashes 3 times

3. Power ON: Blue LED flashes for 1 second on opening the case lid

4. Power OFF: Red LED flashes for 1 second on manual powering off

5. Pairing mode: Alternate blue and red LED flashes on the master earbud & Slave earbud LED flashes blue every 5 seconds

6. Pairing successful (1 time indication): Solid blue LED flashes for 3 seconds

7. If pairing not successful (In pairing mode): The earbuds will show solid red light for 1 second and auto power off

8. Connected: Blue light flashes once every 20s & No LED flash when media is playing

9. Disconnected: Alternate blue and red LED flashes on the master earbud & Slave earbud LED flashes blue every 5 seconds

10. Earbuds Charging: Corresponding case LED flashes depending on the earbud remaining battery level

11. Fully charged: Corresponding case LED remains solid blue for 5 seconds

12. Playing music: All lights are OFF (But "Connected" status will remain)

1. Our IWP™ technology allows the earbuds to connect to your phone if they have already been paired before instantaneously upon opening the case.

2. Simply open the case and ensure that the Bluetooth is turned on for your media device, the buds will connect as soon as the case is opened without the need to take them out of the case first!

• There is no special process to enable IWP™- simply follow the steps to first pair your Airdopes Prime 512your media device. Then upon subsequent usage, the IWP™ tech will be enabled and the earbuds will pair automatically to your previously paired media device if Bluetooth is turned on in your media device.

• Yes, Airdopes Prime 512 has 2 mics per earbud.

• Yes, it does.

• Airdopes Prime 512s support 50 ms low latency for entertainment and casual gaming.10 However, if you’re looking for professional gaming equipment, then Airdopes Prime 51Prime 512right product.

• No, it does not.

• No.

• No, the earbuds do not have any integrated volume controls on them. The volume must be controlled using your connected Bluetooth device.

• No, the voice prompts are integrated inside the earbuds and there is no provision to turn them off or lower their volume.

• While your earbuds do have IPX4 water and sweat resistance, it is recommended that they are not submerged inside water directly or used for prolonged periods inside water like for swimming/showers, as it may lead to damage.
