Airdopes Prime 511

1. Check if the device is in pairing mode, indicated by alternating LED flashes on both the earbuds.

2. Ensure that the device is in the range of Bluetooth (usually 10m) and if there are any obstructions in between.

3. Clear all your pairing history and perform a fresh connection attempt.

4. If it is a passcode issue, then enter 0000 / 1234.

5. Try to forget the earbuds from the device’s Bluetooth paired list, update the mobile software and if it still does not work, try factory resetting the product.

In the App:

• Run the Smart Diagnostics function of the boAt Hearables app and check whether there are issues related to Bluetooth connectivity.

• Please note the Smart Diagnostics function in the app can only identify issues related to the firmware and not the hardware.

1. Check when both the earbuds are taken out of the charging case. The earbuds will enter Connection Mode indicated by alternating red and blue LED flashes.

2. Place the earbuds in the charging case and then try using them again. Check if it connects automatically.

3. Check and see if factory resetting the device works.

NOTE: Before performing reset, clear "Airdopes Prime 511" from your device's pairing history.

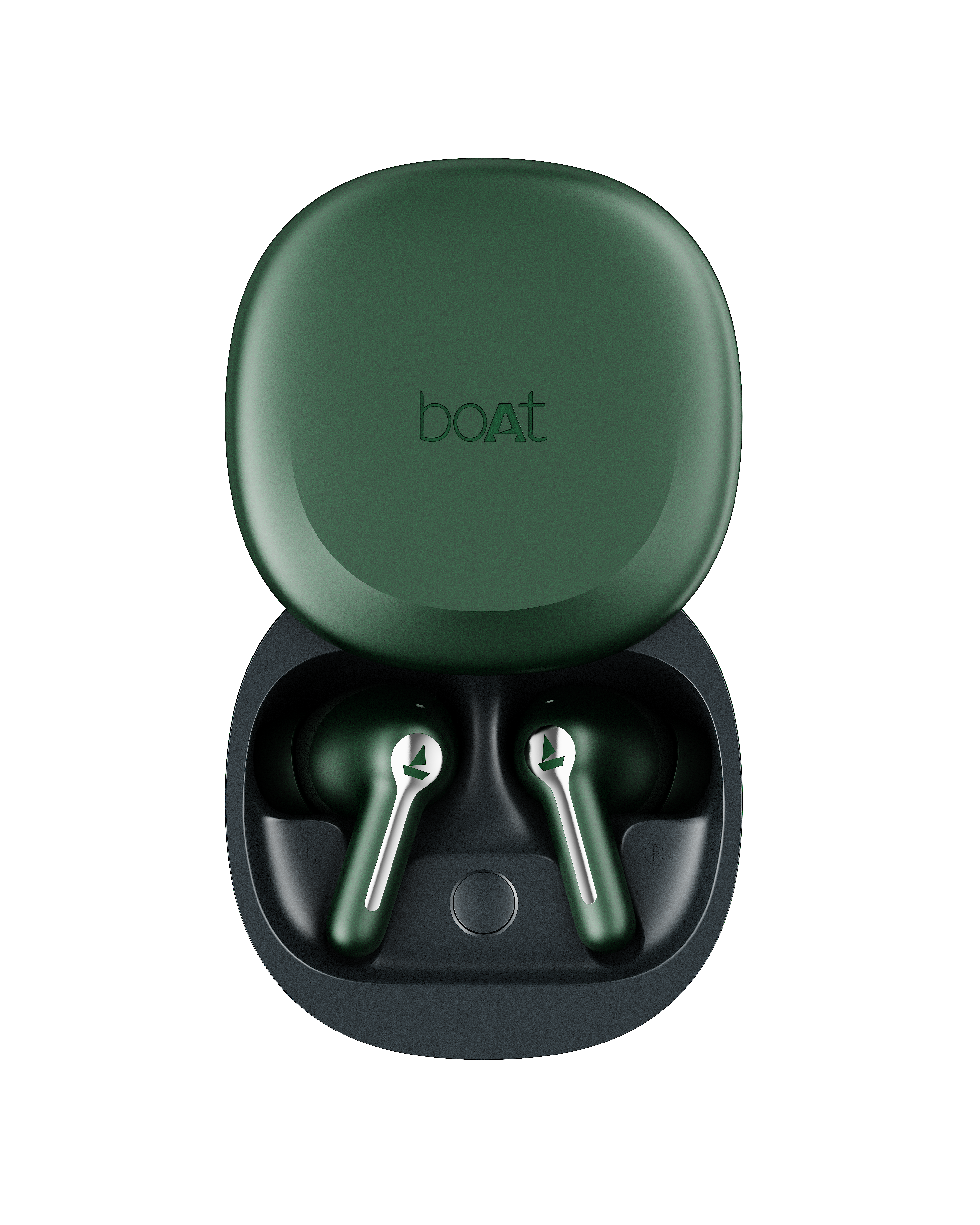

1. Open the case lid and place the earbuds inside the case in the correct orientation.

2. While the earbuds are inside the case, long press the reset button inside the case for 10 seconds. After successful factory reset, the red LED rapidly blinks 5 times on both the case and the earbuds.

3. Close the lid and wait for a few seconds.

4. Open the case lid. Take out the earbuds from the charging case and perform a fresh connection.

5. If the issue does not resolve through reset, then try to manually Power Off and then Power On.

Factory reset through the App:

1. To reset your Airdopes from your device, go to the Troubleshooting section “?” on the Hearables app.

2. Next, tap the “Malfunctioning” sub-header in the Troubleshooting section.

3. Click on the option “Reset My Device” to reset the earbuds.

4. Congratulations! Your Airdopes Prime 511 has been reset.

5. This will now show as “Ready to Pair” in the “My Devices” section. Follow the pairing procedure to connect the earbuds to your device.

1. The boAt Hearables app shows all currently and previously paired devices in the ‘My Devices’ section.

2. Once your Airdopes is paired to your smartphone, the status gets changed to “Connected” in the thumbnail.

3. Tap the thumbnail, to check whether both the left and right earbuds are connected or not.

4. You can also check the battery level of both the earbuds.

If IWP™ isn't functioning:

1. Confirm that your Airdopes model has IWP™ tech integrated.

2. Make sure you have paired the earbuds at least once before to the device you are trying to use IWP™ with.

3. Check if Bluetooth is turned on for your media device and your product name is in the list of paired devices.

4. Try factory-resetting the device.

1. To charge the earbuds, put them into the charging case in their correct orientation and close the case lid.

2. Purple LED on the case flashes for 5 seconds to indicate the left/right earbud charging from the case.

3. Once charging is completed, blue LED flashes for 5 seconds and the charging case automatically switches off to save power.

• To charge the case, plug one end of the cable into the case and connect the other end to a computer, or a wall adapter, or a power bank.

1. Check to see if the wire connected to the case is not broken. Use other wires and ensure that the charger being used is not of 9V or 12V as that will damage the case.

2. To charge the case, plug one end of the provided USB Type-C cable into the case and connect the other end to a computer, power bank, wall adapter, etc.

Note: The LED located on the charging case indicates the battery status of the case and solid green LED indicates full charge.

1. Check to see if the earbuds have been put inside the case in the right orientation.

2. Check to see if the earbuds are completely charged or not.

3. Once the earbuds have been completely charged, the case LED flashes blue for 5 seconds.

4. Check if the charging pins of the case are clear and there is no obstruction.

5. Check if the charging pins of the earbuds are clear and there is no obstruction.

6. Check if the orientation of the earbuds inside the case is correct and if they have been properly inserted inside the case.

7. Check if the pogo pins are clean. You may do so by gently cleaning them using a cotton swab dipped in alcohol.

In the App:

• Check whether the Smart Diagnostics function of the boAt Hearables app can identify any earbud battery issues

1. Charging through wall adapter – Specs of the adapter: 5V, 2A

2. Charging through cable/wire – Standard cable: 35 strands @0.10mm diameter/strand

3. Any other accessory can be used for charging the earbuds if the above norms are followed.

Note : Before using the earbuds for the first time, it is recommended to fully charge the earbuds as well as the charging case. Also, keep the lid of the charging case closed while charging.

Go to the sound settings of your phone and set the equalizer to normal/ default/ none/ 0. EQ settings navigation for top 9 popular mobile brands are as follows:

1. Vivo - https://www.vivoglobal.ph/questionlist/hi-fi-audio/​

   Go to i Music>tap the icon at the left upper corner>select Audio effect>turn on Deep space sound effects>touch Equalizer in the bottom., then you can adjust Equalizer as you like.

   Note: Equalizer is supported in Funtouch OS 4.0 and higher version and can be adjusted only with the earphone plugged in.

2. Xiaomi - https://www.mi.com/global/support/faq/details/KA-497702/​

   Settings > Sound & vibration > Sound effects > Graphic equalizer, You can now choose preset styles or manually adjust the equalizer to your preference.

3. Samsung - https://www.samsung.com/levant/support/tv-audio-video/how-to-set-eq/​

   Settings > Sounds and vibration > Sound quality and effects > Equalizer, You can now either choose from pre-set EQ options (like "Music", "Bass", etc.) or manually adjust the frequency bands to fine-tune the sound.

4. Realme - https://c.realme.com/in/post-details/1397554219417985024​

   There 3 variations for EQ settings navigation according to the different UIs as mentioned below:

   A] Realme UI 6.0: Settings > System & updates > Sound > Equalizer.

   B] Realme UI 5.0, 4.0, 3.0: Settings > System/Additional settings > Sound > Equalizer.

   C] Realme UI 2.0: Settings > Convenience tools > Sound > Equalizer.

5. Oppo - https://www.youtube.com/watch?v=-gpyYtrw-58​

   Open the main Settings app on your phone > Go to Sound & vibration or a similar menu > Look for an Equalizer or Sound Effects option > The exact path can vary depending on the phone model and Android version > Enable it and choose from presets or manually adjust the sliders for different frequency bands.

6. Apple - https://support.apple.com/en-in/guide/iphone/iph5643d2c85/ios​

   Settings > Music > EQ

7. Motorola - https://en-in.support.motorola.com/app/answers/detail/a_id/155724/~/enhance-sound​

   Go to Settings > Sound (& vibration) > Audio effects. (Or, open the Moto app and touch menu > Play > Audio effects) > Turn it On > to use only for headphones or connected devices, set the speaker equalizer to Flat.

8. Poco - https://www.mi.com/global/support/faq/details/KA-509973/#:~:text=1.,or%20adjust%20the%20equalizer%20manually.​

   Settings > Sound & Vibration/ Sound > Sound Effects / Equalizer > Graphic Equalizer

9. OnePlus - https://community.oneplus.com/thread/1111615​

   Settings > Sound & Vibration > Sound Quality & Effects > Audio Tuner or Audio Tuner > Equalizer Settings.

1. Check if third-party Spatial Audio apps are not running on the media device. Please note that the boAt Equalizer function will not work when Spatial Audio mode is activated on a music streaming app or third-party Spatial Audio apps.

2. Try factory resetting the device.

3. Run the Smart Diagnostics function of the boAt Hearables app and check whether there are issues related to the earbud battery. Please note the Smart Diagnostics function in the app can only identify issues related to the firmware and not the hardware.

1. Make sure the charging case is charged. Try to manually power on the earbuds, the powering on is indicated by LED lights on the earbuds.

2. If the earbuds do not power On, try cleaning the pogo pins (magnetic charging pins) of the earbuds with cotton dipped in alcohol swab/spirit. Later, wipe it with a dry cotton to not let any moisture retain on the surface.

3. Now place the earbuds inside the charging case, shut the lid and open it after 5 seconds. The earbud LEDs will start blinking as they automatically power on.

To troubleshoot control issues:

1. Check if the controls do not work while being connected to another device.

2. Check if the media player being used supports such controls and if the controls do not function on a call or with other media players.

3. Check if the controls have been physically damaged or exposed to any hazards.

1. Try restarting the device.

2. Perform a factory reset.

3. Make sure there are no objects between your earbuds and your connected device. Try moving your device closer to the earbuds to see if the connection improves.

4. Look closely at the microphone hole for any dirt or earwax. If the microphone seems blocked, gently clean that area.

In the App:

1. Run the Smart Diagnostics function of the boAt Hearables app and check whether there are issues related to the earbud mic.

2. Please note the Smart Diagnostics function in the app can only identify issues related to the firmware and not the hardware.

1. Smart Power Off - After usage, remove both the earbuds from your ears. Place the earbuds back into the charging case in correct orientation and close the case lid. The earbuds will automatically switch off and enter charging mode.

2. Manual Power Off - Long touch the CTC on both earbuds for 10 seconds, one at a time, to manually switch off the earbuds.

Note: Before performing a factory reset, clear "Airdopes Prime 511" from your device's pairing history by forgetting the device.

1. Open the case lid and place the earbuds inside the case in the correct orientation.

2. While the earbuds are inside the case, press and hold the reset button located inside the charging case for 10 seconds.

3. Close the lid and then re-open it after a few seconds.

4. Perform a fresh connection attempt and enjoy!

• Double tap the Capacitive Touch Controls (CTC) on either earbud to answer an incoming call.

• Triple tap the Capacitive Touch Controls (CTC) on either earbud to end an ongoing call or reject incoming calls.

• Double tap on the left or right earbud CTC to pause or play the track.

1. While playing music, double tap on the left earbud’s Capacitive Touch Controls (CTC) to return to the previous track.

2. While playing music, double tap on the right earbud’s Capacitive Touch Controls (CTC) to skip to the next track.

• The earbuds have integrated volume controls on them. Swipe up/down to increase/decrease the audio volume.

• The volume can also be controlled using your connected Bluetooth device

1. Both earbuds can be used in Mono mode.

2. Use Smart Power On for switching on the desired earbud.

3. The selected earbud will automatically enter the connection mode indicated by alternate red and blue LED flashes.

4. Turn on Bluetooth on your phone/media device and search for “Airdopes Prime 511” to connect.

Note: You can only skip to the next track while using the right earbud or play the previous track using the left earbud in Mono (single earbud) mode

1. Switch the earbuds on; both the earbuds automatically enter into Connection Mode.

2. Turn on the Bluetooth functionality on your phone/media device and scan.

3. Search for ‘Airdopes Prime 511’ and tap on the same for pairing & connecting via Bluetooth.

4. To switch to Stereo mode from Mono, simply take out the other earbud from the case. It will automatically power on and pair with the previously selected earbud, hence enabling Stereo usage.

• Long touch the CTC on the left earbud for 3 seconds to activate the default smart voice assistant.

Earbuds LED Indications:

1. Low battery in it (<30%): Red light quickly blinks 3 times every 30 seconds.

2. Power ON: Blue LED flashes for 1 second on opening the case lid.

3. Power OFF: Red LED flashes for 1 second.

4. Pairing mode: Alternate blue and red LED flashes on the master earbud. Slave earbud LED flashes blue every 5 seconds.

5. Pairing successful (1 time indication): Solid blue LED flashes for 3 seconds.

6. If pairing not successful (In pairing mode): The earbuds will show solid red light for 1 second and auto power off.

7. Connected: Blue light flashes on both the earbuds, or no LED flash when media is playing.

8. Disconnected: Alternate blue and red LED flashes on the master earbud. Slave earbud LED flashes blue every 5 seconds.

9. Earbuds Charging: Purple LED flashes for 5 seconds on the case.

10. Fully charged: Blue LED rapidly flashes 3 times on both the earbuds.

11. Playing music: All lights are OFF (But "Connected" status will remain).

12. Factory Reset Successful: Red LED on both the earbuds and the case flashes for 5 times after successful factory reset.

Charging Case LED Indications (Case Status):

1. Less than 30% battery: Red LED blinks 3 times on opening the case lid.

2. 30%-70% battery: White LED blinks 3 times on opening the case lid.

3. More than 70% battery: Green LED blinks 3 times on opening the case lid.

4. Fully charged (100%): Solid green LED.

Charging Case LED Indications (When Earbuds are charging from the case and the lid is closed):

1. Less than 30% battery: Red LED flashes 3 times rapidly and then blinks slowly.

2. 30%-70% battery: White LED flashes slowly.

3. More than 70% battery: Green LED flashes slowly.

4. Fully charged (100%): Solid green LED.

Charging Case LED Indications (When Earbuds are charging from the case and the lid is closed):

1. On charging: Purple LED flashes for 5 seconds to indicate the left/right earbud charging from the case.

2. Fully charged (100%): Blue LED flashes for 5 seconds once both the earbuds are fully charged.

1. Our IWP™ technology allows the earbuds to connect to your phone if they have already been paired before instantaneously upon opening the case.

2. Simply open the case and ensure that the Bluetooth is turned on for your media device, the buds will connect as soon as the case is opened without the need to take them out of the case first!

• There is no special process to enable IWP™- simply follow the steps to first pair your Airdopes Prime 511 to your media device. Then upon subsequent usage, the IWP™ tech will be enabled and the earbuds will pair automatically to your previously paired media device if Bluetooth is turned on in your media device.

• Yes, Airdopes Prime 511 is integrated with 2 mics per earbud (Quad Mics total).

• Yes, it does.

• Airdopes Prime 511 does support 60 ms low latency for entertainment and casual gaming. However, if you’re looking for professional gaming equipment, then Airdopes Prime 511 is not the right product.

• No, it does not.

• No, it does not.

• Yes, the earbuds have integrated volume controls on them. Swipe up/down to increase/decrease the audio volume.

• The volume can also be controlled using your connected Bluetooth device

• Yes, it supports the voice assistant feature.

• No, the voice prompts are integrated inside the earbuds and there is no provision to turn them off or lower their volume.

To install the boAt Hearables app, you can follow one of the options mentioned below-

1. Scan QR Code: Airdopes Prime 511 has the Hearables app QR code printed on the packaging box. Simply scan this code using your smartphone. The subsequent link will redirect you to the Google Play Store and iOS Store, and you can select the applicable option.

2. Google Playstore: Download the boAt Hearables app from the Google Play Store on your Android smartphone.

3. App Store: Download the boAt Hearables app from the App Store on your iOS smartphone.

1. After installing the app, follow the steps shown to set up your account by entering your phone number, name, and email ID.

2. Account setup is a one-time action.

1. Turn on the Bluetooth on your media device.

2. Log in to your account on the boAt Hearables app.

3. Go to the “My Devices” section.

4. Open the case lid. The earbuds will show up under the list of available devices with “Ready to Pair'' status.

5. Tap the Airdopes Prime 511 name card and accept the pairing request pop-up notification on your media device.

6. Tap the ‘Ok’ option on the pairing notification. You can also save Airdopes Prime 511 to your Google account for fast pairing in the future by clicking on “Save” and then “Set up”.

1. To reset Airdopes Prime 511 from your device, go to the Troubleshooting section “?” on the Hearables app.

2. Next, tap the “Malfunctioning” sub-header in the Troubleshooting section.

3. Click on the option “Reset My Device” to reset the earbuds.

4. Airdopes Prime 511 will now show as “Ready to Pair” in the My Devices section.

1. Dual EQs are preset Equalizer modes found under the "Sound" tab of the Hearables App.

2. Under the Sound tab, you can select modes like 'Default', 'Balanced', 'Rock', 'Classic', 'Pop', and 'Club' to experience preset EQ modes.

3. You can also tap 'Custom' to customize the sound elements to your preference.

Airdopes Prime 511 lets you customize existing touch functions to another from the list of available options.

LEFT earbud:

1 Tap:

Existing Function - Play/Pause audio

Customizable Functions - Previous Track, Next Track, Volume Up, Volume Down, Activate Google/Siri Voice Assistant, Activate/De-activate BEAST™ Mode

2 Taps:

Existing Function - Return to the Previous Track

Customizable Functions - Next Track, Volume Up, Volume Down, Activate Google/Siri Voice Assistant, Play/Pause audio, Activate/De-activate BEAST™ Mode

Long Touch:

Existing Function - Activate Google/Siri Voice Assistant

Customizable Functions - Previous Track, Next Track, Volume Up, Volume Down, Play/Pause audio, Activate/De-activate BEAST™ Mode

Slide:

Existing Function - Volume Up

Customizable Functions - Previous Track, Next Track, Play/Pause audio, Volume Down, Activate Google/Siri Voice Assistant, Activate/De-activate BEAST™ Mode

RIGHT earbud:

1 Tap:

Existing Function - Play/Pause audio

Customizable Functions - Previous Track, Next Track, Volume Up, Volume Down, Activate Google/Siri Voice Assistant, Activate/De-activate BEAST™ Mode

2 Taps:

Existing Function - Skip to the Next Track

Customizable Functions - Previous Track, Volume Up, Volume Down, Activate Google/Siri Voice Assistant, Play/Pause audio, Activate/De-activate BEAST™ Mode

Long Touch:

Existing Function - Activate /De-activate BEAST™ Mode

Customizable Functions - Previous Track, Next Track, Volume Up, Volume Down, Activate Google/Siri Voice Assistant, Activate Google/Siri Voice Assistant

Slide:

Existing Function - Volume Down

Customizable Functions - Previous Track, Next Track, Play/Pause audio, Volume Up, Activate Google/Siri Voice Assistant, Activate/De-activate BEAST™ Mode

• The "Sound" tab displays the "boAt Equalizer" which allows you to change the sound profile (EQ mode) while listening to music.

The "System" tab allows you to manage system functions:

1. Multipoint Connectivity: Toggle the feature ON or OFF.

2. Software Update: Check and install the latest firmware version.

3. User Manual: Access the product's manual.

1. Multipoint connectivity remains ON by default for keeping Airdopes Prime 511 connected to two media devices at the same time.

2. Under the System tab in the Hearables App, slide the “Multipoint Connectivity” toggle to the OFF state to deactivate it. Slide the toggle once again to ON to activate multipoint connection.

1. Pair Airdopes Prime 511 to your media device by following the pairing process.

2. Go to the “System” tab on the Hearables app.

3. Tap the “Check For Updates” option under the “Software Update” header to check and update Airdopes Prime 511 to the latest firmware version, if available.

1. Tap the “Diagnose My Device” option at the bottom of the app screen.

2. Follow the instructions to start the smart diagnostics process.

3. Click on “Let’s Go” to start.

4. Complete all the steps one by one to check Bluetooth connectivity, mic, speaker, and battery functions.

5. Click on ‘Done’ to finish diagnostics.

1. The earbuds have IPX5 water and sweat resistance.

2. However, it is not recommended to submerge them in water or use them for prolonged periods during activities like swimming or showering, as this may cause damage.
