EnergyShroom PB400 Turbo X

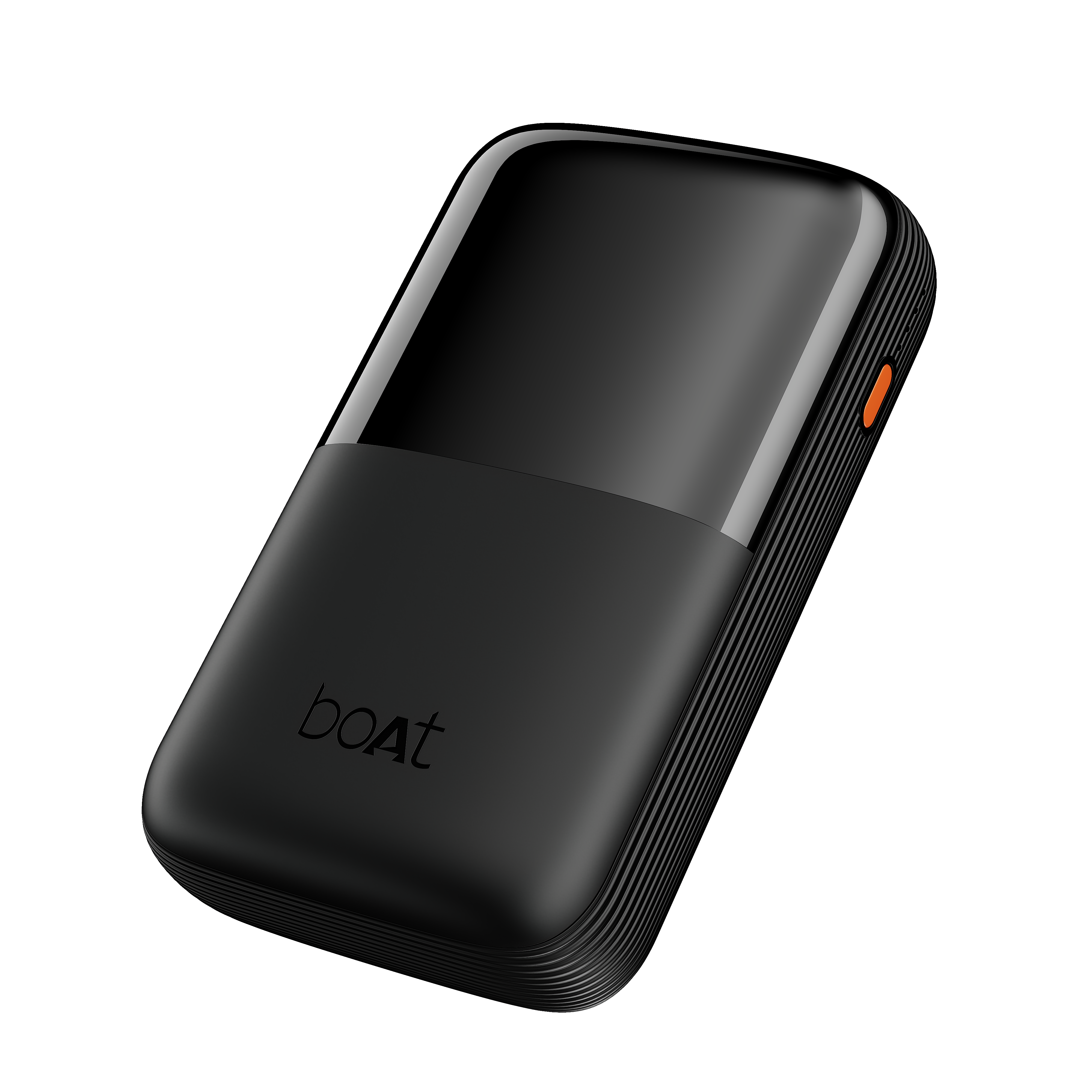

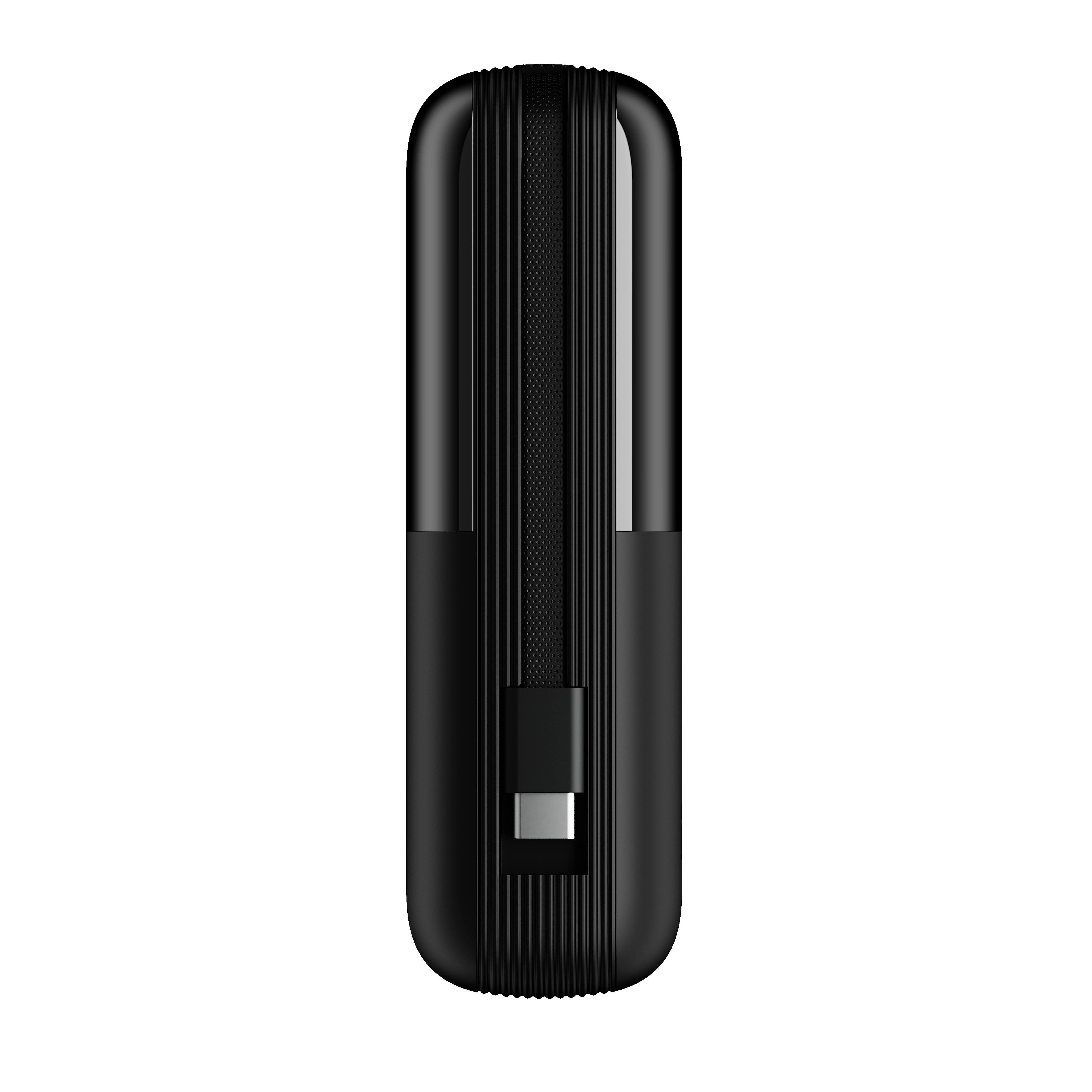

EnergyShroom PB400 Turbo X is a powerful 20000 mAh power bank featuring a built-in Type-C cable and multiple ports. It supports QC, PD, and PPS fast charging protocols to quickly and efficiently charge devices on the go. This sleek and portable power companion ensures you stay powered up wherever life takes you.

Specifications

Capacity	20000 mAh, 3.7 V (74 Wh)
Rated Capacity	13500 mAh 5.0V (TYP 2A)
Dimension	120 mm x 71 mm x 35.5 mm
Battery Type	Li-ion polymer
Input Ports	1x USB-C, 1x Type-C Built-in Cable (2-Way)
Output Ports	1x USB-A Port, 1x Type-C (Built-in Cable), 1x Type-C Port (2-Way)
Input (USB-C)	5V=3A, 9V=3A, 12V=2.9A, 20V=1.75A
Input Type-C (2-Way) Cable	5V=3A, 9V=3A, 12V=2.9A, 20V=1.75A
Output (USB-A)	5V=3A, 9V=2A, 12V=1.5A, 10V=2.25A
Output Type-C Built-in (2-Way)	5V=3A, 9V=3A, 12V=2.9A, 15V=2.33A, 20V=1.75A, 3.3V–11V=3A (PPS)
Output Type-C Port (2-Way)	5V=3A, 9V=3A, 12V=2.9A, 15V=2.33A, 20V=1.75A, 3.3V–11V=3A (PPS)
Full Charge Time (9V/2.0A adapter)	6 Hrs 30 min ± 10 min
Fully Discharged by 18W load	3 Hrs 30 min ± 10 min
Operating Environment	-10 to 55° Celsius
Overcurrent Protection	Protected (3.6±0.10) A
Over Charging Voltage Protection	16±0.05V
Short Circuit Protection	Protected
Body Temperature Cut Off	Yes (55-60° Celsius)

Troubleshooting FAQs

Product Functionality Issues

The power bank is not charging

Try a different QC/PD wall adapter and cable.
Ensure the cable is fully inserted into the Type-C input port (built-in or external).
Check LED indicators for charging status.

The power bank's charging speed is slow

Use a QC/PD wall adapter for optimal speed.
Avoid charging via laptop/desktop USB ports.
It is recommended to use a fast charger for efficient charging.

My device is charging slowly

Confirm your device supports Quick Charge 3.0, Power Delivery, or PPS fast charging.
Use high-quality, fast-charging cables.
Try using a different port.
Ensure fast charge compatibility. If still slow, test with another device.

The power bank is over heating

Remove the power bank from direct sunlight and do not use it in closed environments.
Disconnect all devices and let it cool down.
Some warmth is normal, but if it gets too hot or emits a burning smell, discontinue use.

The ports are not working

Test the ports with a different cable and device.
Check for dust or debris in the ports and clean carefully.

The power bank is not powering On

Press the Power button once to turn ON.
Check LED indicators for activity.
Connect a device to auto-trigger power-on.

The LED indicators are not working

Charge the power bank and observe LEDs.
Press the power button to check status.
Check if it charges devices despite LED failure.

The power bank is not charging fast (for iPhones or Androids)

For iPhones, use a certified USB-C to Lightning cable.
Use the Type-C PD port for fast charging. Confirm your phone supports fast charge.

The pass-through charging is not working

Use only one device while charging the power bank.
Avoid connecting high-wattage devices during pass-through mode.

The power bank heats up when in use

This can occur during fast charging or when charging multiple devices.
Ensure proper ventilation; avoid placing on fabric or bed surfaces.

General FAQs

Device Controls

How to Power ON/OFF EnergyShroom PB400 Turbo X?

Power ON :Press the power button once to turn on the power bank. Connecting a device will also automatically power it on.
Power OFF : The power bank can be turned off manually by pressing the power button twice to stop charging. It will also power off automatically when no device is connected.

What are the LED functions of my power bank?

Battery Level Indicators:

1 LED solid: 0–25% battery level
2 LEDs solid: 25–50% battery level
3 LEDs solid: 50–75% battery level
4 LEDs solid: 75–100% battery level

Fast Charging Indicator: Bottom LED glows green when Quick Charge 3.0, Power Delivery (PD), or PPS fast charging is active.

LED indicators will blink during charging based on current battery level.

All four LEDs solid = fully charged.
Bottom LED glows green when fast charging is active.
Tip: Use an 18W or higher charger for optimal fast charging performance.

What are the button functions?

Single Press: Turns on the LED indicators. Displays battery level and charging status.
Double Press: Turns off the LED indicators and stops charging connected devices
Press & Hold: Resets the power bank to its default state.

What is the charging input and capacity?

Capacity: 20000 mAh.
Input: The power bank can be charged via the built-in Type-C cable or the dedicated Type-C (2-Way) Port. Use an 18W or higher charger for optimal fast charging performance.

How to charge multiple devices?

USB-A Output: Connect your device via USB-A cable.
Built-in Type-C Cable: Directly connect to your device.
Type-C (2-Way) Port: Use a compatible Type-C cable to charge additional devices.

How long does it take to fully charge or discharge?

Full Charge Time: Approx. 6 hrs 30 min ± 10 min with 9V/2A adapter.
Discharge Time: Approx. 3 hrs 30 min ± 10 min under 18W load.

Can the power bank charge the laptops?

The power bank only supports low-power USB-C PD laptops/tablets (≤30W).
Not suitable for gaming laptops or high-wattage devices.
