EnergyShroom PB300 Activ

EnergyShroom PB300 Activ is a sleek and portable 10000 mAh power bank featuring dual output ports (USB-A and Type-C) for versatile charging. It supports QC, PD, and PPS fast charging protocols to power up your devices quickly. This power bank is your lightweight and reliable energy companion for daily use.

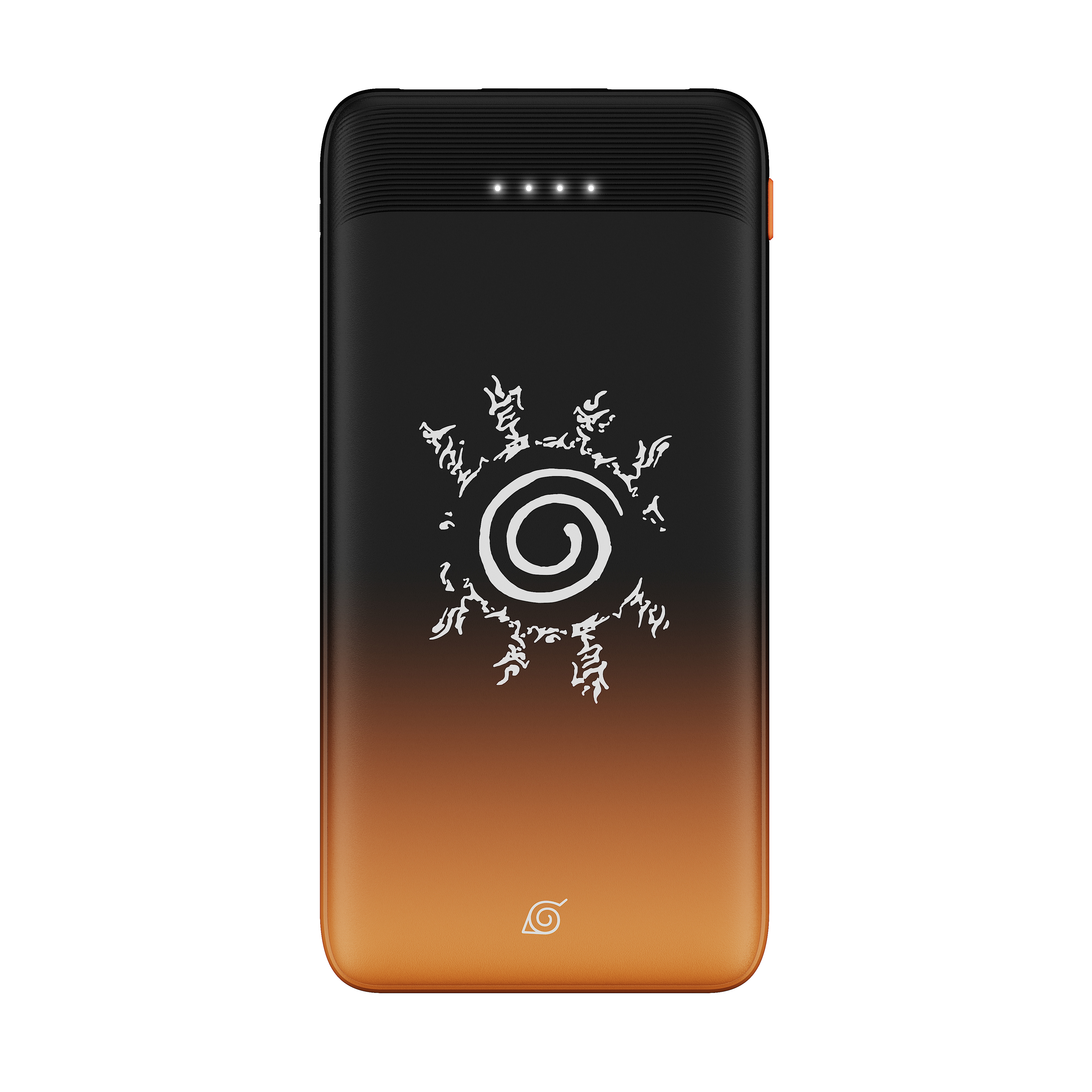

PB300 naruto pp.1.png

Specifications

Capacity	10000mAh 3.7V (37Wh)
Rated Capacity	6750mAh 5.0V (TYP 2A)
Dimensions	140 × 70 × 17 mm
Battery Type	Li-ion polymer
Input Ports	1× Micro-USB, 1× Type-C (2-way)
Input	DC 5V/2A, 9V/2A (Micro); DC 5V/3A, 9V/2A, 12V/1.5A (Type-C)
Output Ports	2× USB-A, 1× Type-C (2-way)
Output (USB 1/2)	5V/3A, 9V/2A, 12V/1.5A, 5V/4.5A
Output (Type-C)	5V/3A, 9V/2.22A, 12V/1.67A, 3.3V–11V/2.0A (PPS)
Full Charge Time (9V/2.0A adapter)	4 hrs 30 min ± 10 min
Fully Discharged by 18W Load	1 hr 45 min ± 10 min
Operating Environment	-10°C to 55°C
Overcurrent Protection	Protected (3.6 ± 0.10 A)
Overcharging Voltage Protection	16 ± 0.05 V
Short Circuit Protection	Protected
Body Temperature Cut Off	Yes (55–60°C)

Troubleshooting FAQs

Product Functionality Issues

The power bank is not charging

Try a different wall adapter and cable.
Ensure the cable is fully inserted in the input port.
Check LED indicators.

The power bank's charging speed is slow

Use a QC/PD wall adapter (9V/2A or 18W+) for optimal speed.
Avoid charging via laptop/desktop USB ports.

My device is charging slowly

Confirm your device supports fast charging.
Use high-quality, fast-charging cables.
Try using a different port.

The power bank is over heating

Remove from direct sunlight and do not use in closed environments.
Disconnect all devices and let it cool down.
Some warmth is normal. If it gets too hot or emits burning smell, discontinue use.

The ports are not working

Test the ports with a different cable and device.
Check for dust or debris in the ports and clean carefully.

The power bank is not powering On

Press the Power button once to turn ON.
Check LEDs light up.
Connect a device to auto-trigger power-on.

The LED indicators are not working

Charge the power bank and observe LEDs.
Try pressing the power button.
Check if it charges devices despite LED failure.

The power bank is not charging fast (for iPhones or Androids)

Confirm your phone supports QC 3.0, PD, or PPS fast charge.
Use compatible cables (e.g., USB-C to Lightning for iPhones).
Use the Type-C PD port for fastest charging.
Ensure fast charge compatibility. If still slow, test with another device.

The pass-through charging is not working

Use only one device while charging the power bank.
Avoid connecting high-wattage devices during pass-through mode.
It supports basic pass-through and is not recommended for heavy usage during recharging.

The power bank heats up when in use

This can occur during fast charging or when charging multiple devices.
Ensure proper ventilation; avoid placing on fabric or bed surfaces.

General FAQs

Device Controls

How to Power ON/OFF EnergyShroom PB300 Activ?

Power ON : Press the power button once to turn on the power bank. Connect a device to automatically power it on.
Power OFF : It can also be turned off manually by pressing the power button twice.

What are the LED functions of my power bank?

To Check Status: Press the power button once to switch the LED indicator on and see the charging status.
Battery Level Indicators:

1 LED in solid light: 0–25% battery level.
2 LEDs in solid light: 25–50% battery level.
3 LEDs in solid light: 50–75% battery level.
All LEDs in solid light: 75–100% battery level.

Fast Charging Indicator: The rightmost LED indicator will turn green when the power bank or device uses Quick Charge 3.0, Power Delivery, or PPS fast charging/discharging.

What are the button functions?

Single Press: To turn the power bank and LED indicator on.
Double Press: To turn the power bank and LED indicator off.
Press and Hold (10 seconds): To reset the power bank while it is on.

What is the charging input and capacity?

Capacity: 10000 mAh.
Input Ports: The power bank has a Micro-USB and a Type-C (2-way) port for input.
Charging Tip: For optimal fast charging, use a compatible Quick Charge 3.0, Power Delivery, or PPS fast charger

How to charge multiple devices?

Connect the device to the power bank using a USB-A or Type-C connector for charging.
If the power bank doesn’t start automatically, single press the power button to begin charging.
The rightmost LED indicator will turn green if your device supports QC 3.0, PD, or PPS fast charging.

How long does it take to fully charge or discharge?

Full Charge Time: Approximately 4 Hours 30 min $\pm$ 10 Min when using a 9V / 2.0A adapter.
Full Discharge Time: Approximately 1 Hour 45 Minutes $\pm$ 10 Min when under an 18W load.
