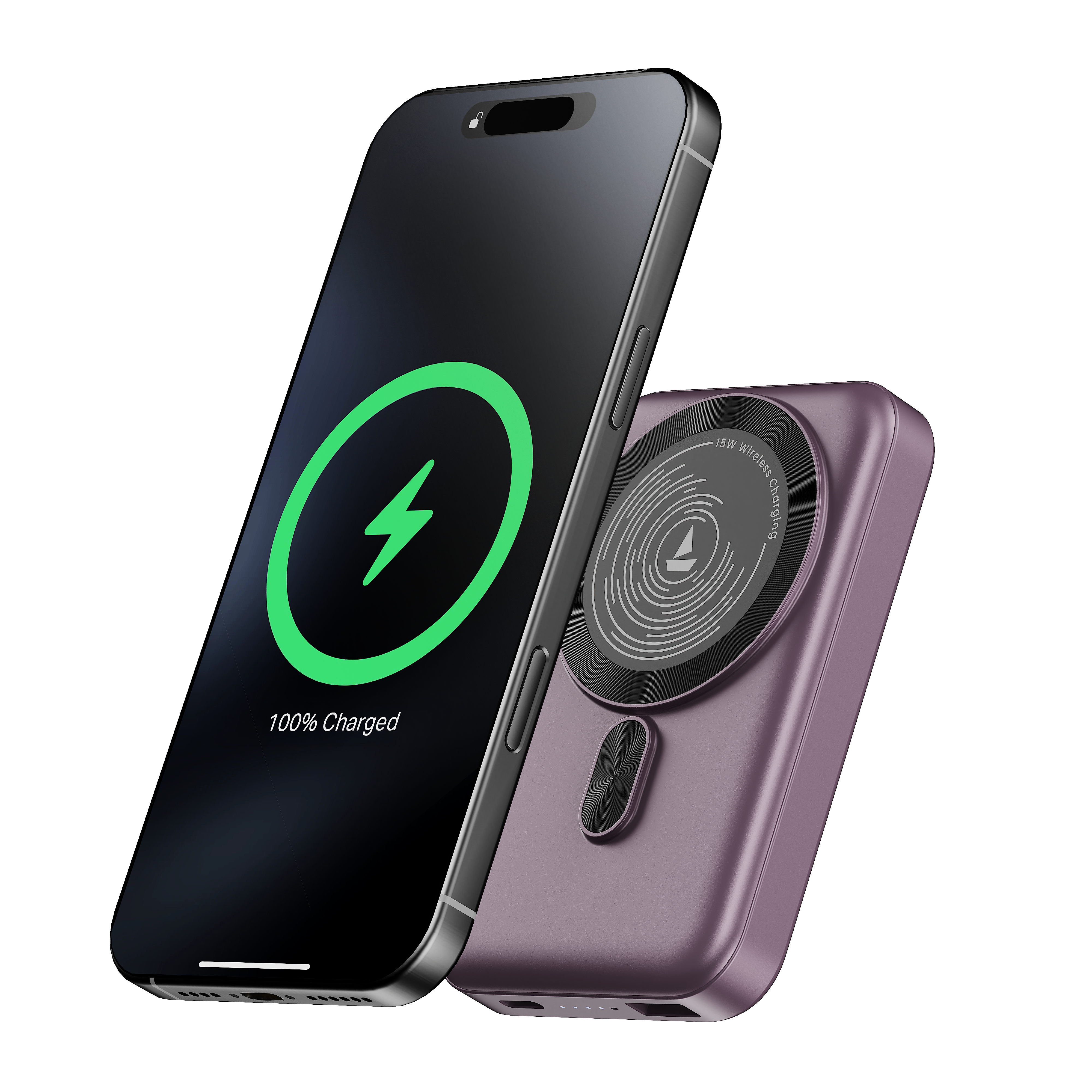

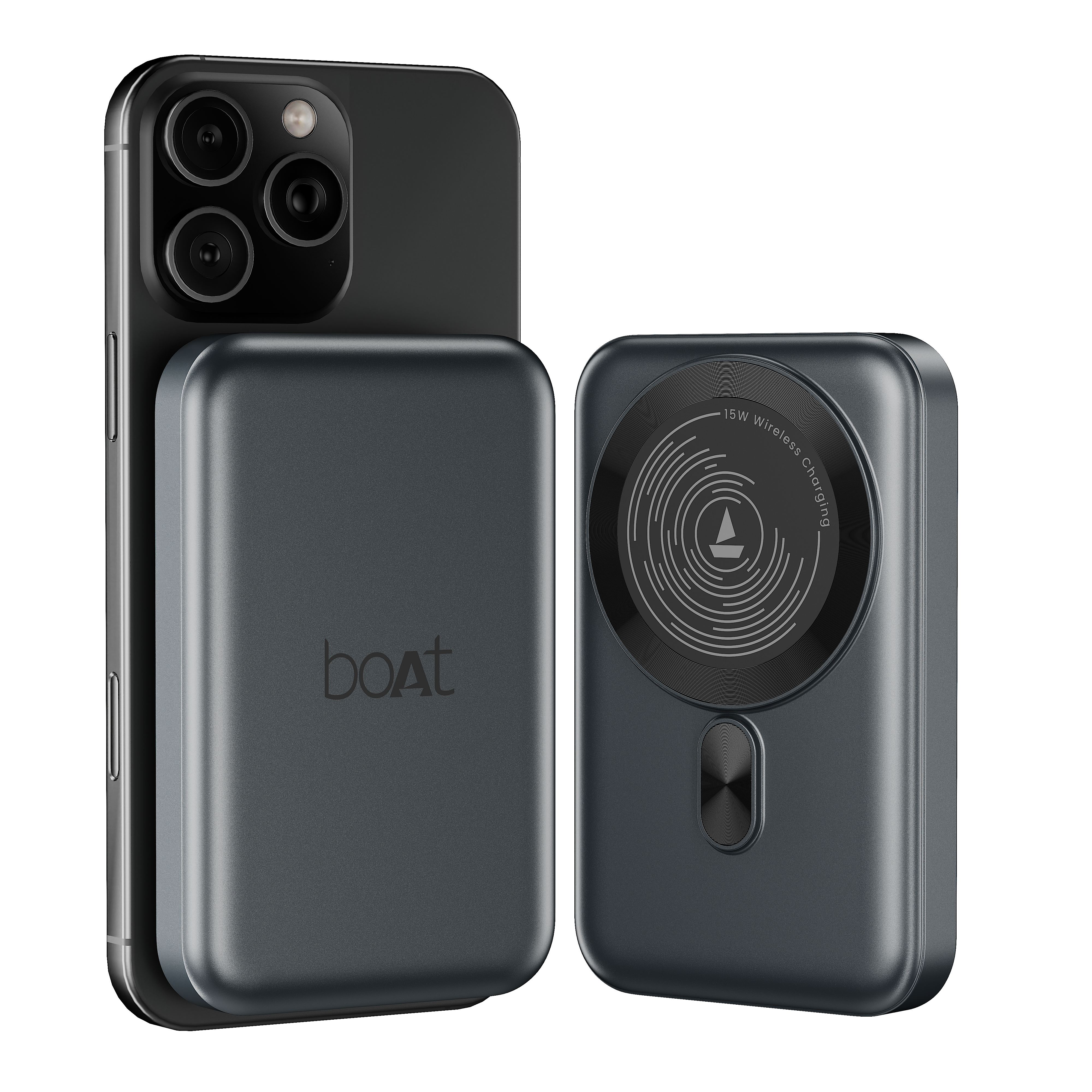

Energyshroom PB 331 Magnacharge

1. Use a QC/PD wall adapter for optimal speed.

2. Avoid charging via laptop/desktop USB ports.

3. Recommend using a fast charger for efficient charging.

1. Confirm that your device supports fast charging.

2. Use high-quality, fast-charging cables.

3. Try using a different port.

4. Ensure fast charge compatibility. If still slow, test with another device.

1. Remove the power bank from direct sunlight and do not use it in closed environments.

2. Disconnect all devices and let it cool down.

3. Some warmth is normal, but if it gets too hot or emits a burning smell, discontinue use

1. Test the ports with a different cable and device.

2. Check for dust or debris in the ports and clean carefully.

1. Press the Power button once to turn ON.

2. Check LED indicators for activity.

3. If LEDs remain OFF, charge the device for at least 30 minutes using a certified Type-C cable and 9V/2A adaptor

1. Charge the power bank and observe LEDs.

2. Try pressing the power button.

3. Check if it charges devices despite LED failure.

1. Ensure your device and cable are certified for Quick Charge (QC), Power Delivery (PD), or PPS fast charging.

2. The right-most LED should turn blue if fast charging is active.

3. Use high-quality, fast-charging cable.

1. Use only one device while charging the power bank.

2. Avoid connecting high-wattage devices during pass-through.

3. It is not recommended for heavy usage during recharging.

1. This is normal during fast charging or multi-device use.

2. Ensure proper airflow and avoid fabric/bed surfaces.

3. If it gets too hot, disconnect and let it cool.

1. Ensure the phone supports Qi wireless charging.

2. Place it centrally on the charging pad. If using non-MagSafe phones, attach the included MagnaCharge ring correctly.

3. Adjust placement or replace ring if issue persists.

1. Re-install the MagnaCharge ring precisely over the wireless coil area.

2. Remove any thick or uneven case.

3. Magnet locks properly; stable wireless charging should be restored.

The four main white LEDs indicate battery level:

• 1 LED (0-25%)

• 2 LEDs (25-50%)

• 3 LEDs (50-75%)

• 4 LEDs (75-100%)

The right-most indicator shows the charging state:

• Blue (Wired Fast Charging/Discharging)

• Green (Wired Charging/Discharging + Wireless Charging, or Wireless Charging only)

• Cyan (15W Wireless Fast Charging).

1. Single Press: Powers on the device and shows battery status.

2. Double Press: Powers off the device.

3. Hold Down: Stops any device charging taking place.

• The capacity is 10000 mAh (38.5 Wh). The input is DC 5V/3A, 9V/2A, or 12V/1.5A via the 2-way USB-C port.

• You can charge up to three devices simultaneously using the USB-A port, the USB-C port, and the Magnetic Wireless Charge pad.

• Note that simultaneous wired and wireless charging will result in slower, 5V output speed for both.

• The power bank supports Quick Charge 3.0, Power Delivery (PD), and PPS (Programmable Power Supply) fast charging standards for both input and output.

• The power bank is only compatible with the USB-C Output (up to 20W equivalent) supports standard PD protocols, meaning it can charge smaller USB-C devices and potentially sustain charge on low-power laptops.
