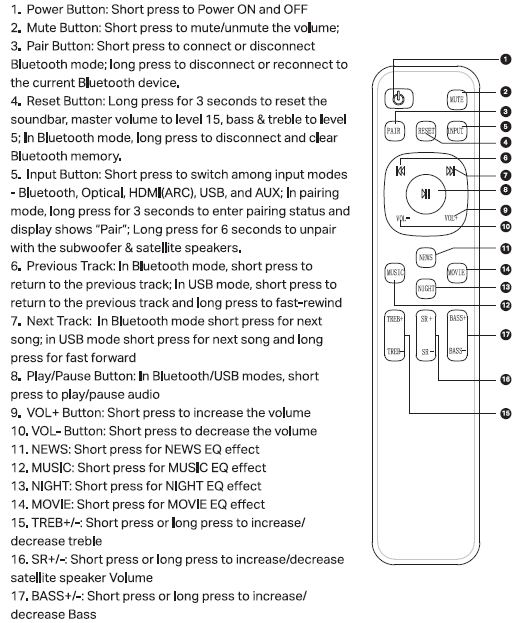

1. Check if the controls do not work while connected to another device.

2. Check if the device is in AUX mode because the remote buttons will not work in AUX mode.

3. Check if the media player being used supports such controls and if the controls do not function on call or other media players.

4. Check if the remote control has been physically damaged or exposed to any hazards.

5. Before you press any playback control button, first select the correct source.

6. Reduce the distance between the remote control and the unit.

7. Insert the battery with its polarities (+/-) aligned as indicated.

8. Check that the batteries in the remote are functional and of the correct type; try to replace the battery.

9. Aim the remote control directly at the sensor on the front of the unit.

10. If nothing else works and there is no physical damage send the device for repair/replacement of the remote control.

1. Check if the connected device does not have any equalizer settings applied.

2. Check if the problem still occurs if the device is moved closer and all obstacles in the middle are removed.

3. Check if the distortion or quality lowers at all volumes or only at high volumes.

4. Check for different media players and different devices and if the distortion happens on all devices or only on specific ones.

5. Check if the problem occurs when connected to different power sockets.

1. Check to see if the device has been properly connected, i.e. the jack is properly inserted into the device for AUX, properly connected with the HDMI cable from the unit's HDMI (e-ARC) slot to the HDMI (e-ARC) slot on your e-ARC compatible TV, check if the protective cap of the OPTICAL cable is removed, then connect the OPTICAL cable to the TV’s OPTICAL OUT socket and the OPTICAL port on the unit, the USB flash drive that is connected is functional, or if it is connected by Bluetooth then it is paired properly and the “BT” on the display is not blinking to indicate it is properly paired in Bluetooth mode.

2. When using any of the Digital inputs, if there is no audio, try setting the TV output to PCM or connect directly to your Blu-Ray/other source; some TVs do not pass-through digital audio, check the TV manual for details.

3. Your TV may be set to variable audio output. Confirm that the audio output setting is set to FIXED or STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information.

4. Check if the device has been properly connected to the power socket and if the problem occurs on all modes of playback. If connected to the TV, ensure that the connections are secure, the TV supports the playback mode and the volume is set properly on the TV.

5. Check if the device was not subject to any mishandling or exposed to direct sunlight or hazards like fire.

1. Check if Aavante Prime X is plugged in properly to the power source and turned on using the button on the soundbar or the remote.

2. Check if there are any loose wirings.

3. Turn off the power switch and wait for a few minutes and try again.

1. Check if the controls do not work while connected to another device.

2. Check if the device is in AUX mode because the buttons will not work in AUX mode.

3. Check if the media player being used supports such controls and if the controls do not function on call or other media players.

4. Check if the controls have been physically damaged or exposed to any hazards.

1. Check if the controls do not work while connected to another device.

2. Check if the device is in AUX mode because the remote buttons will not work in AUX mode.

3. Check if the media player being used supports such controls and if the controls do not function on call or other media players.

4. Check if the remote control has been physically damaged or exposed to any hazards.

5. Before you press any playback control button, first select the correct source.

6. Reduce the distance between the remote control and the unit.

7. Insert the battery with its polarities (+/-) aligned as indicated.

8. Check that the batteries in the remote are functional and of the correct type; try to replace the battery.

9. Aim the remote control directly at the sensor on the front of the unit.

Utilize the provided power cable to connect the AC IN port of the soundbar to a power socket.

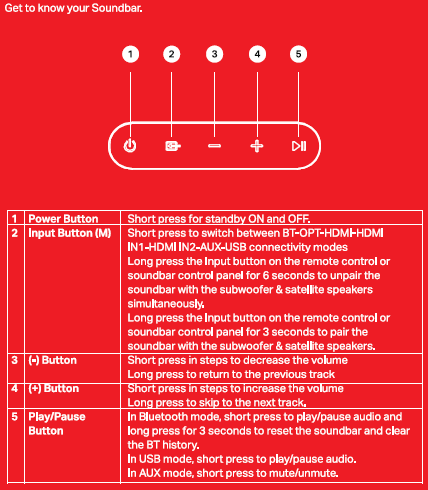

1. Short press the ‘Power’ button on the soundbar control panel or the remote control to switch on the soundbar.

2. Short press the ‘Power’ button again to switch off the device. Unplug from the wall outlet if you want to switch the unit off completely.

• Short press the “INPUT” button on the soundbar or on the remote control to switch it to Bluetooth mode. On your phone search for “Aavante Prime X” and connect.

1. Short press the Input button repeatedly on the soundbar or on the remote control to switch between BT-OPT-HDMI-HDMI IN1-HDMI IN2-AUX-USB modes.

2. EQ Modes: The soundbar has 4 Equalizer modes - Music, Movie, Night & News.

1. Aavante Prime X satellite speakers feature a built-in rechargeable battery that can be recharged using an AC 110V-240V power supply.

2. When the battery is low (<20%/30 mins remaining playtime), the speaker will display the corresponding LED indication as mentioned below-

3. Pairing Mode: Blue LED slowly flashes once and red LED flashes twice

4. Paired State: Solid blue LED and red LED also flashes twice within 1 second

5. Standby Mode (Standalone Operation)：Red LED flashes twice within 1 second

6. Interconnect the satellite speakers to the soundbar. Charging starts once the satellite speakers are attached to the soundbar and the soundbar is plugged into the main power supply. The satellite speakers will auto-charge in both standby mode and in working status when inserted into the soundbar.

7. Alternatively, to charge the satellite speakers separately, detach them from the soundbar. Plug one end of the Type-C cable into the satellite speakers and connect the other end to a computer, wall adapter, power bank, etc.

8. Charging state is indicated by slowly flashing green LED (each satellite will take 3 - 3.5 hrs to fully charge). Once the satellite speaker is fully charged, the LED indicator will turn solid green.

Note:

1. Before using the satellite speakers for the first time, it is recommended to charge the battery for 3 hours.

2. If the battery is completely discharged, then recharge the speaker for at least an hour before using it.

3. When charging the satellite speakers via Type-C cable, you need to charge the satellite speakers individually.

1. Charging through wall adapter – Specs of the adapter: 5V/2A

2. Charging through cable/wire – Standard cable: 35 strands @0.10mm diameter/strand

3. Any other accessory can be used for charging the satellite speakers as long as the above norms are followed.

1. Plug the soundbar into the main socket and short press the Power button to switch it on from standby mode.

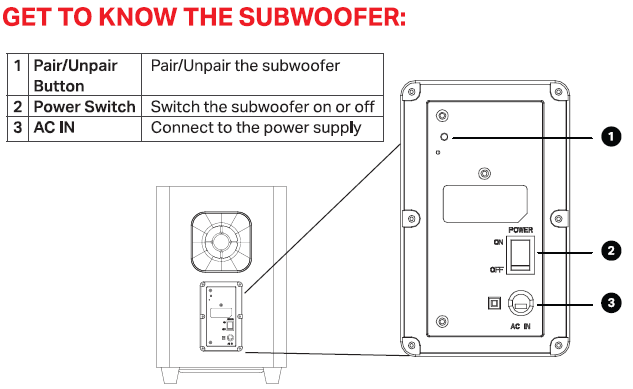

2. Plug the wireless subwoofer into the main socket and press the Power switch to ‘ON’; blue LED flashes slowly to indicate the same.

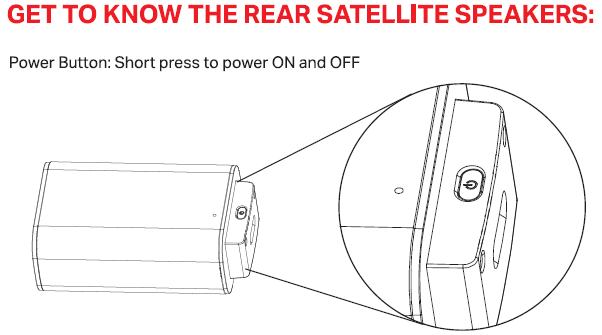

3. Take out the wireless satellite speakers and long press the Power button for 3 seconds to switch them on; blue LED flashes slowly to indicate the same. The subwoofer and satellite speakers will auto-pair with the soundbar when powered on.

4. Alternatively, press and hold the Input button on the remote control or soundbar control panel for 3 seconds to pair with the subwoofer and satellite speakers. The display will show “PAIRING”.

5. Next, short press the Power button on the wireless satellite speakers and short press the Pair button on the wireless subwoofer. LED starts flashing rapidly on the subwoofer and the satellite speakers. The pairing process is completed in 3-5 seconds and indicated by solid blue LED.

1. Long press the Input button on the remote control or soundbar control panel for 6 seconds to unpair the soundbar with the subwoofer & satellite speakers simultaneously.

2. In case you want to pair another soundbar with the existing subwoofer & satellite speakers, after switching on the new soundbar, press and hold the Input button on the remote control or soundbar control panel for 3 seconds. The display will show “PAIRING”.

3. To pair a new subwoofer and/or satellite speakers with the existing soundbar, press and hold the Input button on the remote control or soundbar control panel for 3 seconds. The display will show “PAIRING”. Next, short press the Power button on the wireless satellite speakers and short press the Pair button on the wireless subwoofer. LED starts flashing rapidly on the subwoofer and the satellite speakers.

4. Then, switch off the soundbar using the remote control (do not remove the mains plug) and switch it on again to start operation. The pairing process is completed in 3-5 seconds and indicated by solid blue LED.

1. The unit will automatically turn to standby mode when no audio input is received for 30 minutes. The soundbar will wake up from Standby mode when the Power button is pressed, or source input is received.

2. If the TV or the external unit is disconnected, switch off the soundbar.

3. To switch the unit off completely, remove the mains plug from the mains socket.

4. Please turn the unit off completely to save energy when not in use.

1. Turn on the soundbar. Short press the Input button on the soundbar or on the remote to select Bluetooth mode.

2. Upon selecting Bluetooth, flashing "BT" icon will be displayed on the LED screen; the device goes into Bluetooth mode.

3. On your media device under Bluetooth functionality, search for “Aavante Prime X” when both the devices are within the Bluetooth transmission range and select the same to establish Bluetooth connectivity. (Press ‘0000’, if asked for a code)

4. The soundbar gets reconnected to the last paired device by default within working range whenever the soundbar gets switched on subsequently.

5. Long press the Pair button on the remote control to unpair or reconnect with the connected media device.

• Short press the INPUT button repeatedly on the soundbar or on the remote control to switch between Bluetooth (BT), HDMI (ARC), Optical, USB, and AUX modes.

• EQ Modes: The soundbar has 4 Equalizer modes - Music, Movie, News & Sports.

1. When the soundbar is powered on, short press the “Input” button on the soundbar or on the remote repeatedly to switch to USB mode; indicated by “Usb” on the LED display.

2. Plug in your USB drive into the soundbar’s USB port.

3. Short press the “-” button to decrease volume

4. Short press the “+” button to increase volume

1. Utilize the provided 3.5 mm cable to connect the soundbar to your media device.

2. Short press the “Input” button on the soundbar or on the remote multiple times to switch to AUX mode.

3. Playback has to be controlled on your connected media device.

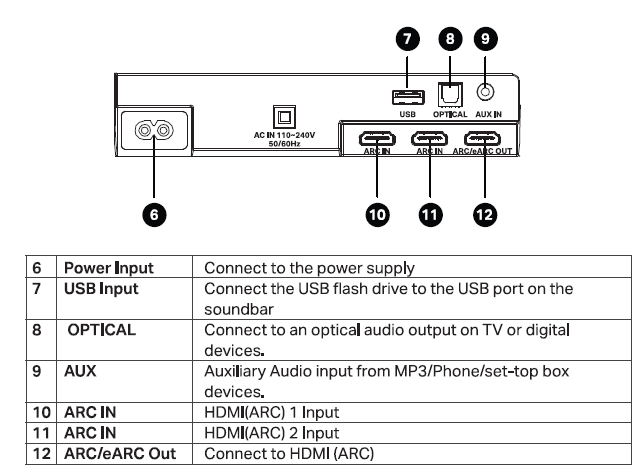

1. Plug in the HDMI (e-ARC) cable into the HDMI OUT (e-ARC) port on the soundbar and plug in the other side to a TV or other media device with HDMI(e-ARC) port.

2. Short press the Input button on the soundbar or on the remote repeatedly to switch to HDMI(e-ARC) mode; indicated by HDMI.

3. Short press the “-” button to decrease volume.

4. Short press the “+” button to increase volume.

1. Utilize an optical cable to connect the soundbar and TV / other media device with the optical port.

2. Short press the Input button on the soundbar or on the remote repeatedly to switch to Optical mode.

3. Short press “-” to decrease volume.

4. Short press “+” to increase volume.

1. BT: Bluetooth Mode

2. Usb: USB Media Mode

3. AU: AUX Mode

4. HDMI: HDMI Mode

• No, it doesn't have in-built FM

• No, it doesn't support Alexa.

1. The Amazon Firestick will not connect to the soundbar.

2. The soundbar and the Amazon Firestick will connect separately to the TV.

• Yes, it supports Dolby Atmos.

• No, it can be use with Sound bars only

• No, installation is not provided by the seller.

• Yes, it works with HDMI (ARC)/ Optical/AUX/USB ports.

• Yes, it works on other devices with Bluetooth or AUX connectivity.

• Yes, it is mountable.

• Yes
